TUCSON 1713 GL

MAIN FEATURES

  • 4 poles electrical motor (1450 RPM) with thermal protection
  • Water cooling (three-phase models)
  • Three ceramic coated pistons (full ceramic on 1713 model), brass linear pump head with built-in by-pass valve
  • Automatic Stop System (mono-phase models)
  • Delayed and low voltage Automatic Stop System (three-phase models)
  • Suction and delivery S. S. valves
  • Detergent built-in tank for indirect suction
  • Pressure regulator
  • Glicerine pressure gauge
  • Accessory holder

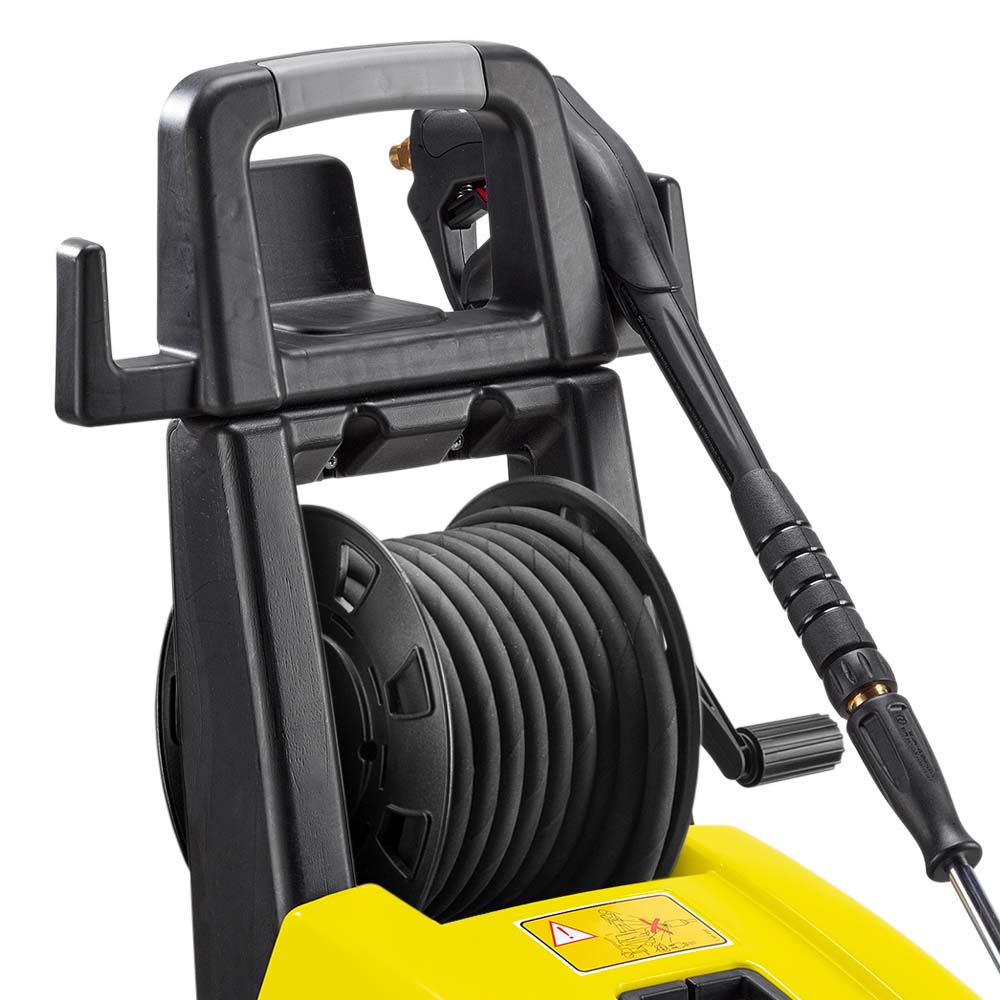

  • Hose-holder
  • Ergonomic handle
  • 2,8 l. detergent tank

TUCSON 1713 GL

MAIN FEATURES

  • 4 poles electrical motor (1450 RPM) with thermal protection
  • Water cooling (three-phase models)
  • Three ceramic coated pistons (full ceramic on 1713 model), brass linear pump head with built-in by-pass valve
  • Automatic Stop System (mono-phase models)
  • Delayed and low voltage Automatic Stop System (three-phase models)
  • Suction and delivery S. S. valves
  • Detergent built-in tank for indirect suction
  • Pressure regulator
  • Glicerine pressure gauge
  • Accessory holder
  • Hose-holder
  • Ergonomic handle
  • 2,8 l. detergent tank
Share
Find the nearest dealer to you


TECHNICAL FEATURES

TUCSON 1713 GL

Product code

36089-00044

Max pressure (bar)

190

Operating pressure (bar)

170

Delivery rate l/h max

780

Absorbed power (W)

5200

power supply (V-Hz)

400-50

RPM

1450

Gross weight (Kg)

42

Product dimensions (cm)

76 x 41 h91

TECHNICAL DOCUMENTS



INCLUDED ACCESSORIES


GUN AL55 350bar 45 l/min 160°C - swivel inlet 3/8M - cod. 00080-01695


HIGH PRESSURE HOSE 5/16 315BAR R2 10m 1/2 SWIVEL-3/8 - cod. 00080-02347


ZNT LANCE FOR HIGH/LOW PRESSURE - cod. 00080-01724


HIGH PRESSURE NOZZLE 1/8M 15055 - cod. 00080-03190

Plus

201 - testata ottone.jpg

Brass Head

Brass pump head, robust and performing it is ideal for intense use

211_Giri motore.jpg

Motor Low Rotation Speed

The lower rotation speed of the components grants longer pump life

209-motore raffreddato ad acqua.jpg

Water Cooled Motor(only three phase models)

Allows a drop in operating temperature of the motor and pump mechianical elements, granting reliability and longlife

OTHER PRODUCTS IN THE RANGE TUCSON GL

TUCSON 1509 GL

Max pressure (bar)
160
Delivery rate l/h max
540
Absorbed power (W)
3000

TUCSON 2017 GL

Max pressure (bar)
230
Delivery rate l/h max
1000
Absorbed power (W)
7500
