COMFORT XXS IDS

MAIN FEATURES

  • IDS: Integrated Disinfection System, maximum operational flexibility. The system allows sanitization
  • to be carried out before, during and after the traditional surface washing.
  • Separate function for chemical dosage.
  • 2 adjustable nozzles with adjustable flow rate
  • Combined disinfection system connected directly to the solution tank suitable for sanitizing large surfaces
  • 32 kg. of constant pressure on the brushes.
  • Double counter rotating brush (66 cm of scrubbing width) obtaining better stability and constant pressure.
  • Great working autonomy thanks to the possibility to use 4 batteries 6 V 240 Ah and to rear wheel-drive.
  • Large load tank capacity (real load of 85 l. ), resulting in reduced numbers of stops and maximum use of battery for effective operation of the machine.
  • Ergonomic steering wheel of new design with user friendly controls and digital display.
  • Easy access to electrical components.
  • Inspection cover for fast and easy cleaning and sanification of  dirt water tank.
  • Automatic device that stops brushes and detergent water outflow when the machine is stationary.
  • Self-levelling brush plate.
  • Automatic detergent dosing system.

COMFORT XXS IDS

MAIN FEATURES

  • IDS: Integrated Disinfection System, maximum operational flexibility. The system allows sanitization
  • to be carried out before, during and after the traditional surface washing.
  • Separate function for chemical dosage.
  • 2 adjustable nozzles with adjustable flow rate
  • Combined disinfection system connected directly to the solution tank suitable for sanitizing large surfaces
  • 32 kg. of constant pressure on the brushes.
  • Double counter rotating brush (66 cm of scrubbing width) obtaining better stability and constant pressure.
  • Great working autonomy thanks to the possibility to use 4 batteries 6 V 240 Ah and to rear wheel-drive.
  • Large load tank capacity (real load of 85 l. ), resulting in reduced numbers of stops and maximum use of battery for effective operation of the machine.
  • Ergonomic steering wheel of new design with user friendly controls and digital display.
  • Easy access to electrical components.
  • Inspection cover for fast and easy cleaning and sanification of  dirt water tank.
  • Automatic device that stops brushes and detergent water outflow when the machine is stationary.
  • Self-levelling brush plate.
  • Automatic detergent dosing system.
Share:

TECHNICAL FEATURES

66BT IDS

Product code

8.579.0033

power supply (V-Hz)

24V

Work track (mm)

660

Working width / squeegee (mm)

855

Working capacity (m²/h)

3250

Solution tank capacity (l)

80

Recovery tank capacity (l)

85

Type of advancement

Rear wheeldrive

RPM / Brush pressure (RPM/Kg)

170/32

Depression / Vacuum motor absorbed power (mm H₂O/W)

1300/400

Max. gradient empty / full tank

13%/10%

Product dimensions (cm)

123x63x121

Packaging dimensions (cm)

140x82x135

Weight (Kg)

219

INCLUDED ACCESSORIES


PPL BRUSH 330 mm. WITH UNIFIED COUPLING FLANGE - cod. 5.511.2212


PPL BRUSH 330 mm. WITH UNIFIED COUPLING FLANGE - cod. 5.511.2212


FRONT SQUEEGEE BLADE L.960x57x2,5mm - cod. 4.508.1619


REAR POLYURETHANE SQUEEGEE BLADE 1000x57x3mm - cod. 4.508.1618


BATTERY CHARGER CBHD2 24V 20A (Pb-Acid) - cod. 0.108.0054


GEL BATTERY 12V 105A/C5-120A/C20 - cod. 0.107.0063

Plus

415_seduta ergonomica XXS.jpg

Comfortable and ergonomic seat

Allows the operator to work effortless for a long time, improving productivity

416_vano porta batterie XXS.jpg

Large battery compartment

Great working autonomy thanks to the possibility 4 batteries, granting continuous working

417_sistema igienizzante XXS IDS.jpg

IDS integrated sanitizing system

Maximum operational flexibility: the system allows sanitization to be carried out before, during and after the traditional surface washing

OTHER PRODUCTS IN THE RANGE Ride-on

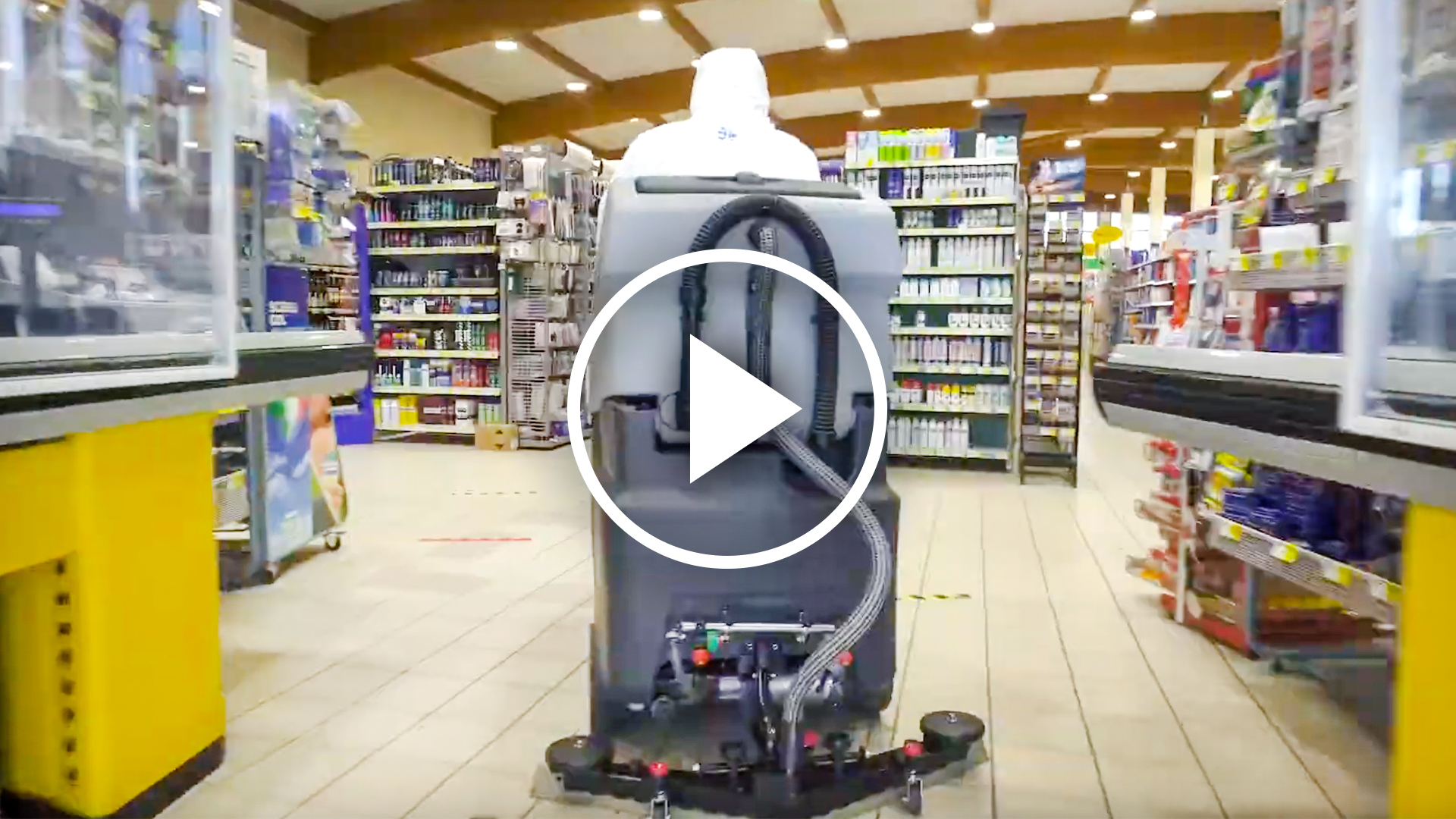

Video

Related products

OPTIONAL ACCESSORIES


TUBULAR BATTERY 6V-240 Ah C20 - 180 Ah C5 - cod. 0.107.0004


GEL BATTERY 6V 180Ah C5 - 240Ah C20 - cod. 0.107.0072


TUBULAR BATTERY 12V-157Ah C20 - 118 Ah C5 - cod. 0.107.0002


BATTERY CHARGER24V 30Ah 220-240/50-60 Hz - cod. 0.108.0080


FRONT POLYURETHANE SQUEEGEE BLADE 960mm - cod. 4.508.1594


REAR POLYURETHANE SQUEEGEE BLADE 1000mm - cod. 4.508.1596


TYNEX BRUSH 330 mm. WITH UNIFIED COUPLING FLANGE - cod. 5.511.2208


PPL 0,03 BRUSH 330 mm. WITH UNIFIED COUPLING FLANGE - cod. 5.511.2209


PES BRUSH 330 mm. WITH UNIFIED COUPLING FLANGE - cod. 5.511.2210


EWU PAD DRIVER 330 mm. WITH UNIFIED COUPLING FLANGE - cod. 5.511.2211


ABRASIVE PAD FOR PAD HOLDER BEIGE D.330/13 (KIT 5 PCS.) - cod. 6.508.0030


ABRASIVE PAD FOR PAD HOLDER GREEN D.330/13 (KIT 5 PCS.) - cod. 6.508.0037


ABRASIVE PAD FOR BLACK PAD HOLDER D.330/13 (KIT 5 PCS.) - cod. 6.508.0044


FLASHING LIGHT SET - cod. 6.505.0062


5KG DETERGENT TANK KILLVIR PLUS - cod. 3.697.0083
