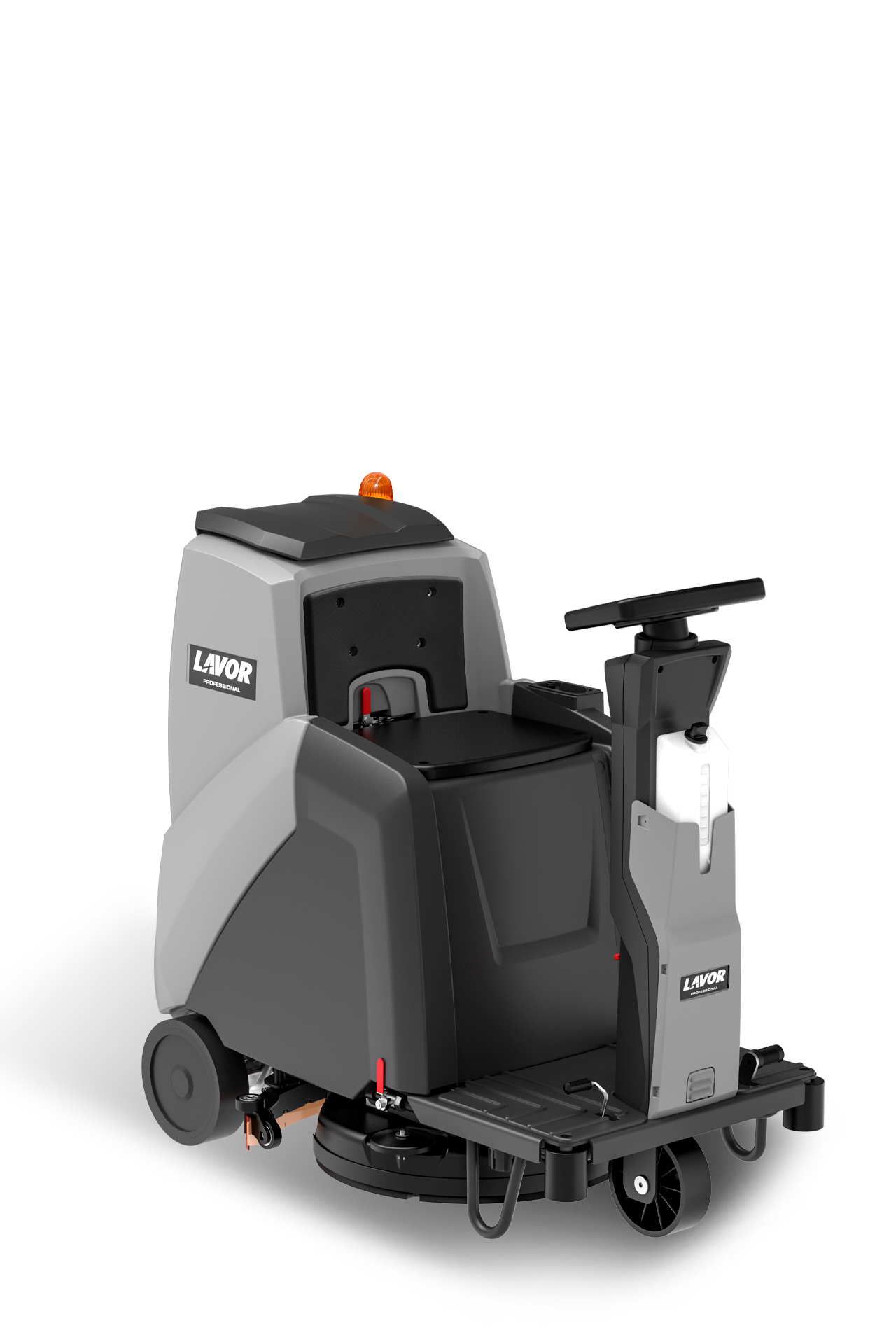

COMFORT XXS UP

Ultra Compact Ride On Floor Scrubber Dryer

Designed for the maintenance and deep cleaning of large areas (up to 3200 m2.) with a very important reduction of cleaning cost. Very compact size and great maneuverability like walk behind models: suited for maintenance cleaning

MAIN FEATURES

32 kg. of constant pressure on the brushes.
Double counter rotating brush (66 cm of scrubbing width) obtaining better stability and constant pressure.
Great working autonomy thanks to the possibility to use 4 batteries 6 V 240 Ah and to rear wheel-drive.
Large load tank capacity (real load of 85 l. ), resulting in reduced numbers of stops and maximum use of battery for effective operation of the machine.
Ergonomic steering wheel of new design with user friendly controls and digital display.
Easy access to electrical components.
Inspection cover for fast and easy cleaning and sanification of dirt water tank.
Automatic device that stops brushes and detergent water outflow when the machine is stationary.
Self-levelling brush plate.
Automatic detergent dosing system.
Automatic brush plate and squeegee lifting system
Li-Ion Batteries on model Comfort XXS UP Li
Batteries and battery charger included (model 8.579.0105)

COMFORT XXS UP

Ultra Compact Ride On Floor Scrubber Dryer

MAIN FEATURES

32 kg. of constant pressure on the brushes.
Double counter rotating brush (66 cm of scrubbing width) obtaining better stability and constant pressure.
Great working autonomy thanks to the possibility to use 4 batteries 6 V 240 Ah and to rear wheel-drive.
Large load tank capacity (real load of 85 l. ), resulting in reduced numbers of stops and maximum use of battery for effective operation of the machine.
Ergonomic steering wheel of new design with user friendly controls and digital display.
Easy access to electrical components.
Inspection cover for fast and easy cleaning and sanification of dirt water tank.
Automatic device that stops brushes and detergent water outflow when the machine is stationary.
Self-levelling brush plate.
Automatic detergent dosing system.
Automatic brush plate and squeegee lifting system
Li-Ion Batteries on model Comfort XXS UP Li
Batteries and battery charger included (model 8.579.0105)

TECHNICAL FEATURES

COMFORT XXS UP 66UP 66UP Li 66UP CMP

Product code

37010-00075

power supply (V-Hz)

24V

Work track (mm)

660

Working width / squeegee (mm)

855

Working capacity (m²/h)

3250

Solution tank capacity (l)

Recovery tank capacity (l)

Type of advancement

Rear wheeldrive

RPM / Brush pressure (RPM/Kg)

170/32

Depression / Vacuum motor absorbed power (mm H₂O/W)

1300/400

Max. gradient empty / full tank

13%/10%

Product dimensions (cm)

123x63x121

Packaging dimensions (cm)

140x82x135

Weight (Kg)

139

Product code

37010-00079

power supply (V-Hz)

24V

Work track (mm)

660

Working width / squeegee (mm)

855

Working capacity (m²/h)

3250

Solution tank capacity (l)

Recovery tank capacity (l)

Type of advancement

Rear wheeldrive

RPM / Brush pressure (RPM/Kg)

170/32

Depression / Vacuum motor absorbed power (mm H₂O/W)

1300/400

Max. gradient empty / full tank

13%/10%

Product dimensions (cm)

123x63x121

Packaging dimensions (cm)

140x82x135

Weight (Kg)

142

Product code

37010-00076

power supply (V-Hz)

24V

Work track (mm)

660

Working width / squeegee (mm)

855

Working capacity (m²/h)

3250

Solution tank capacity (l)

Recovery tank capacity (l)

Type of advancement

Rear wheeldrive

RPM / Brush pressure (RPM/Kg)

170/32

Depression / Vacuum motor absorbed power (mm H₂O/W)

1300/400

Max. gradient empty / full tank

13%/10%

Product dimensions (cm)

123x63x121

Packaging dimensions (cm)

140x82x135

Weight (Kg)

139

TECHNICAL DOCUMENTS

Technical data sheet

Product instruction manual

INCLUDED ACCESSORIES

Plus

OTHER PRODUCTS IN THE RANGE

Video

INCLUDED ACCESSORIES

PPL BRUSH 330 mm. WITH UNIFIED COUPLING FLANGE - cod. 10002-08102

FRONT SQUEEGEE BLADE L.960x57x2,5mm - cod. 00005-02293

REAR POLYURETHANE SQUEEGEE BLADE 1000x57x3mm - cod. 00005-02292

BATTERY CHARGER 24V 30A 115-240V 50/60Hz - cod. 00056-00087

BATTERY LiFePo4 25,6V 84Ah 2150Wh - cod. 00055-00083

Plus

Ergonomic steering wheel

With digital intuitive controls and display

Comfortable and ergonomic seat

Allows the operator to work effortless for a long time, improving productivity

Lithium-Ion Batteries

The Lithium-Ion batteries allow to use the machine at any time because it is always ready to use because it has a fast full charge up to 80% in an hour. It uses maximum power only when needed and it is more ecological and long-lasting if compared to gel or acid accumulators
