THERMIC 9.1L

MAIN FEATURES

  • Three ceramic coated pistons, brass linear pump head with built-in by-pass valve
  • Suction and delivery S/S valves

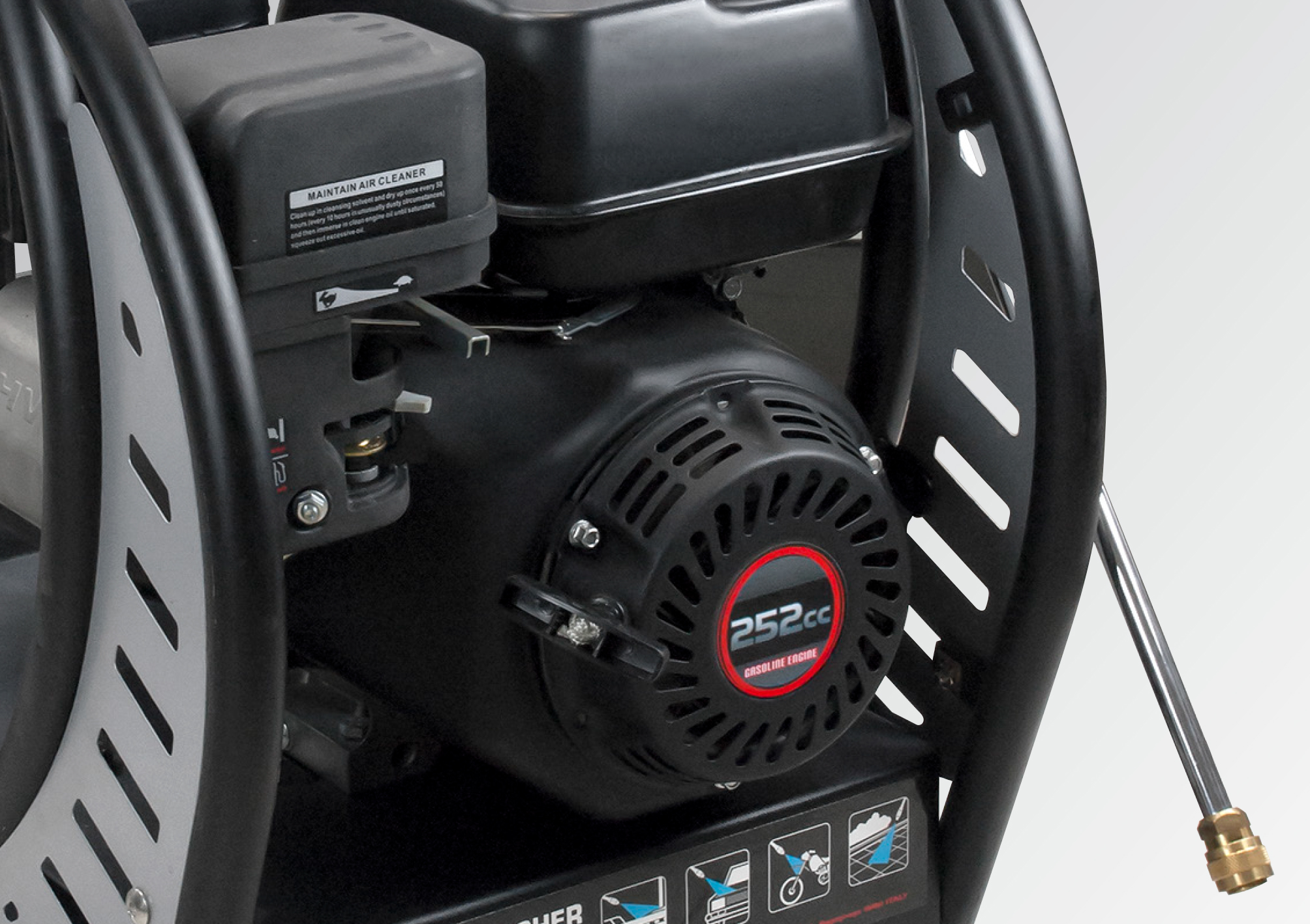

  • 8 HP unleaded gasoline engine.
  • By-pass with safety valve.
  • Integrated detergent suction with external suction probe.
  • Pressure regulator.
  • Suction hose with check valve (optional).
  • Hose holder.
  • Nozzles holder.

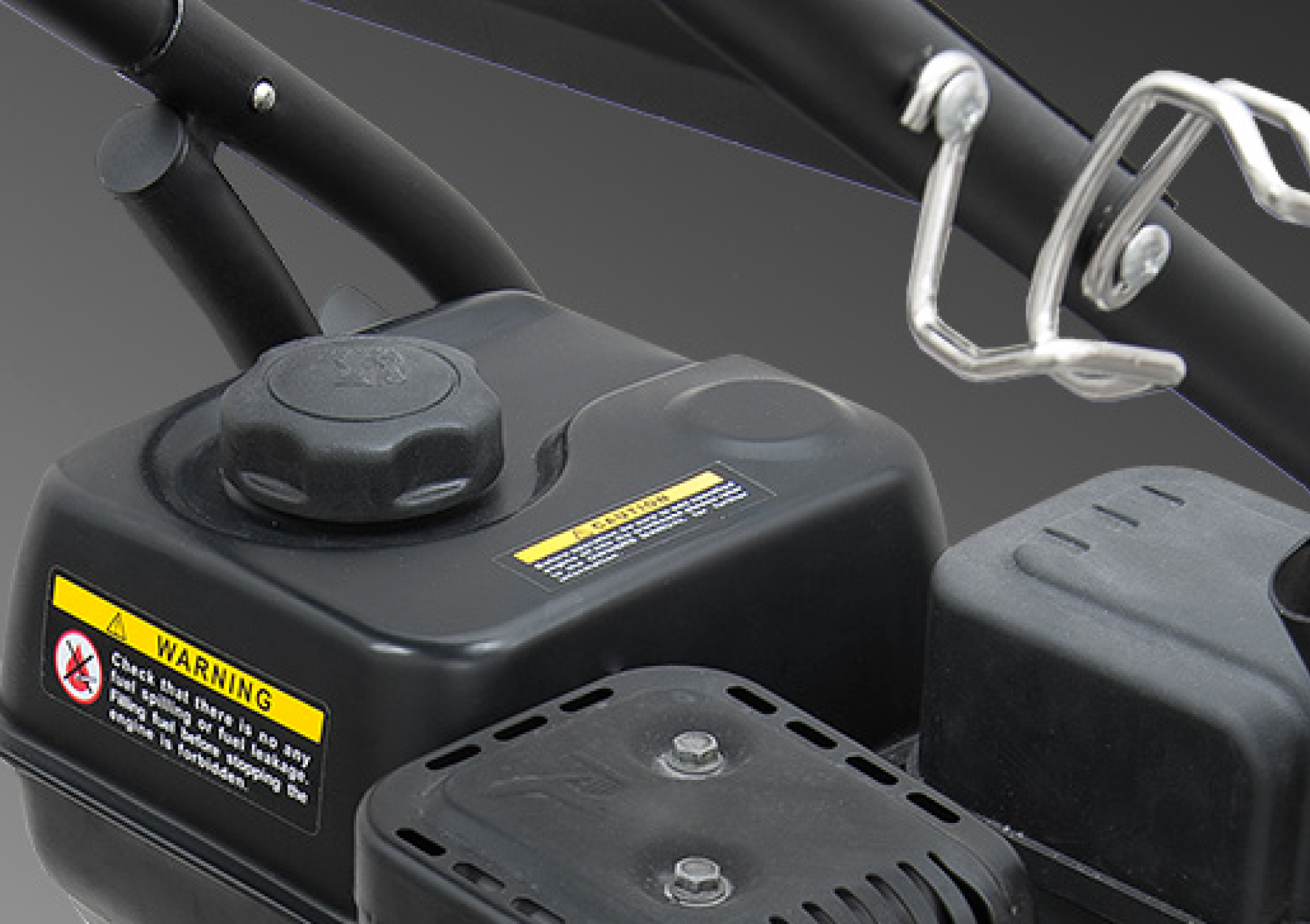

  • 4 l gasoline tank.

THERMIC 9.1L

MAIN FEATURES

  • Three ceramic coated pistons, brass linear pump head with built-in by-pass valve
  • Suction and delivery S/S valves
  • 8 HP unleaded gasoline engine.
  • By-pass with safety valve.
  • Integrated detergent suction with external suction probe.
  • Pressure regulator.
  • Suction hose with check valve (optional).
  • Hose holder.
  • Nozzles holder.
  • 4 l gasoline tank.
Share


TECHNICAL FEATURES

THERMIC 9.1L

Product code

36113-00081

Operating pressure (bar)

190

Max pressure (bar)

200

Delivery rate (l/h)

780

Pump type / RPM

TPBH5/3400

Max. inlet temperature (°C)

40

Motor type / HP

Loncin/8

Product dimensions (cm)

50x59x60

Packaging dimensions (cm)

70x57x70

Weight (Kg)

56

TECHNICAL DOCUMENTS



Technical data sheet
Product instruction manual
Product instruction manual

INCLUDED ACCESSORIES


GUN AL15 26Mpa-100°C-30lt/min G3/8M - M22 - cod. 00080-01701


METAL LANCE 415mm WITHOUT NOZZLE HOLDER WITH NOZZLE QUICK COUPLING-M22 - cod. 00080-02770


5 NOZZLES D.1,2 FOR QUICK COUPLING LANCE GR.0-15-25-40-FOAM - cod. 10002-12241


HIGH PRESSURE HOSE 10m 3/8 1/4 - cod. 00080-02258

Plus

201 - testata ottone.jpg

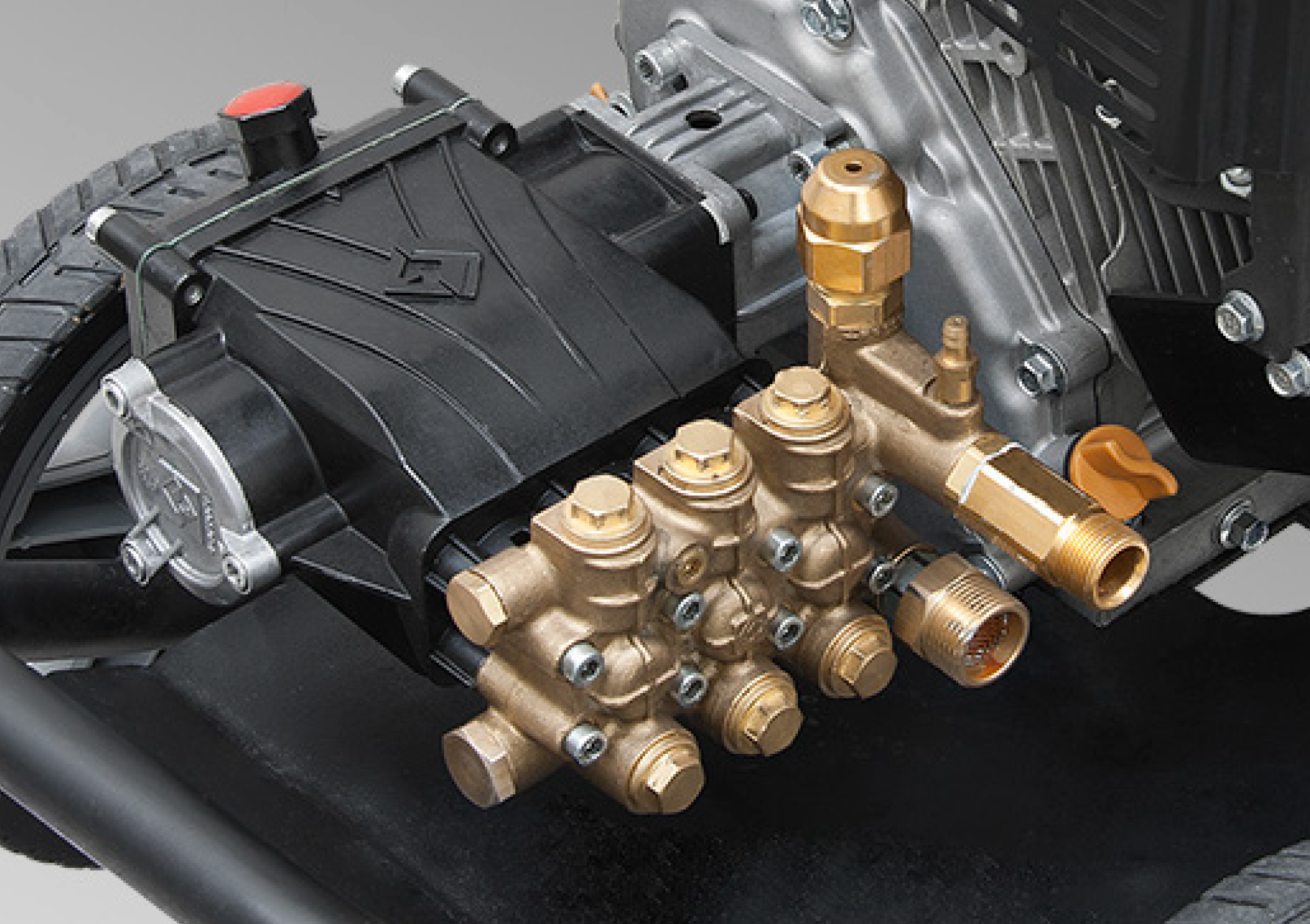

Brass Head

Brass pump head, robust and performing it is ideal for intense use

206-robusto telaio in acciaio.jpg

Steel Frame

Sturdy, with a high guarantee of durability, resistant to stress and accidental impacts

204-regolatore di pressione.jpg

Pressure Regulator

It allows to adjust the pressure according to use and needs

OTHER PRODUCTS IN THE RANGE THERMIC

Related products

OPTIONAL ACCESSORIES


SUCTION HOSE SET - cod. 10002-12275
