GV KATLA

MAIN FEATURES

Satured steam at 9 bar at a temperature of 175°C
Steam gun with low tension control
Stainless steel body AISI 304
Boiler 3,3 kW S. S. AISI 304. Thickness 25/10
Low level water lamp indicator
Device for using chemicals and detergents mixed with steam
Heating and activation time required: 7 min.
Steam regulation
Discharge valve
Pressure gauge
The boiler can be refilled from the tank provided (continuous duty)
Wheels suitable for food and processing areas
Storage basket.

GV KATLA

MAIN FEATURES

Satured steam at 9 bar at a temperature of 175°C
Steam gun with low tension control
Stainless steel body AISI 304
Boiler 3,3 kW S. S. AISI 304. Thickness 25/10
Low level water lamp indicator
Device for using chemicals and detergents mixed with steam
Heating and activation time required: 7 min.
Steam regulation
Discharge valve
Pressure gauge
The boiler can be refilled from the tank provided (continuous duty)
Wheels suitable for food and processing areas
Storage basket.

TECHNICAL FEATURES

GV KATLA

Product code

45006-00001

power supply (V-Hz)

230-50

Steam pressure max (bar)

Temperature (°C)

175

Boiler absorbed power (W)

3300

Steam production (Kg/h)

4.62

Water/detergent tank capacity (l)

5/5

Boiler Type / Volume (l)

Stainless Steel AISI 304/4.6

Product dimensions (cm)

75x60x70

Packaging dimensions (cm)

75x60x70

Weight (Kg)

TECHNICAL DOCUMENTS

Technical data sheet

Product instruction manual

INCLUDED ACCESSORIES

Plus

OTHER PRODUCTS IN THE RANGE

INCLUDED ACCESSORIES

COMPLETE GUN WITH 3m HOSE - cod. 10002-06391

STEAM EXTENSION PIPE - cod. 00080-01873

RECTANGULAR STEAM BRUSH - cod. 00080-04317

TRIANGULAR STEAM BRUSH - cod. 00080-04318

STEAM GLASS WIPER - cod. 00080-02040

ELBOW JOINT FOR TRIANGULAR/RECTANGULAR BRUSH - cod. 00080-02049

TURBO STEAM LANCE WITH NOZZLE - cod. 00080-02039

BRUSH D.28 SET (3PCS) - cod. 10001-09769

TRIANGULAR BRUSH - cod. 00080-04382

NYLON BRISTLE BRUSH D.50 - cod. 00080-04322

PLASTIC SCRAPER 50mm - cod. 00080-02911

TOWEL WIPE FOR INDUSTRIAL USE (22x22cm.with elastic band) - cod. 00080-04692

Plus

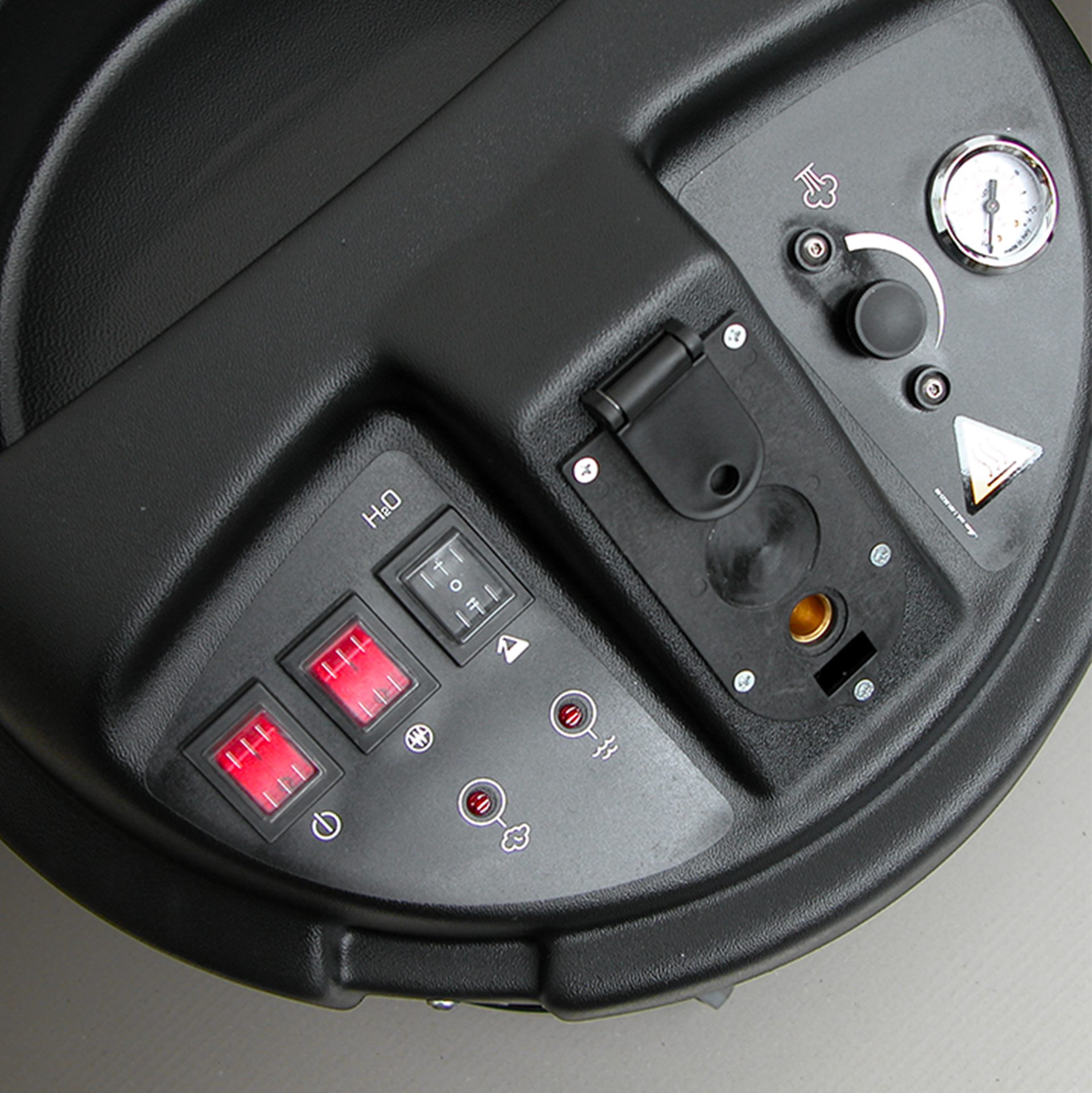

Simple and intuitive control panel

With quick coupling steam gun, main ON/OFF switch with lamp, boiler ON/OFF switch with lamp, water/detergent selector, steam flow rate regulator, steam ready lamp, low water level lamp with buzzer, steam pressure gauge

Accessory storage facility

Practical basket for storing cleaning products, sponges, gloves and anything else needed

Emptying tap

Discharge valve for complete discharge of the boiler; it eliminates water residues and formation of limescale, thus lengthening the lifespan of the boiler
