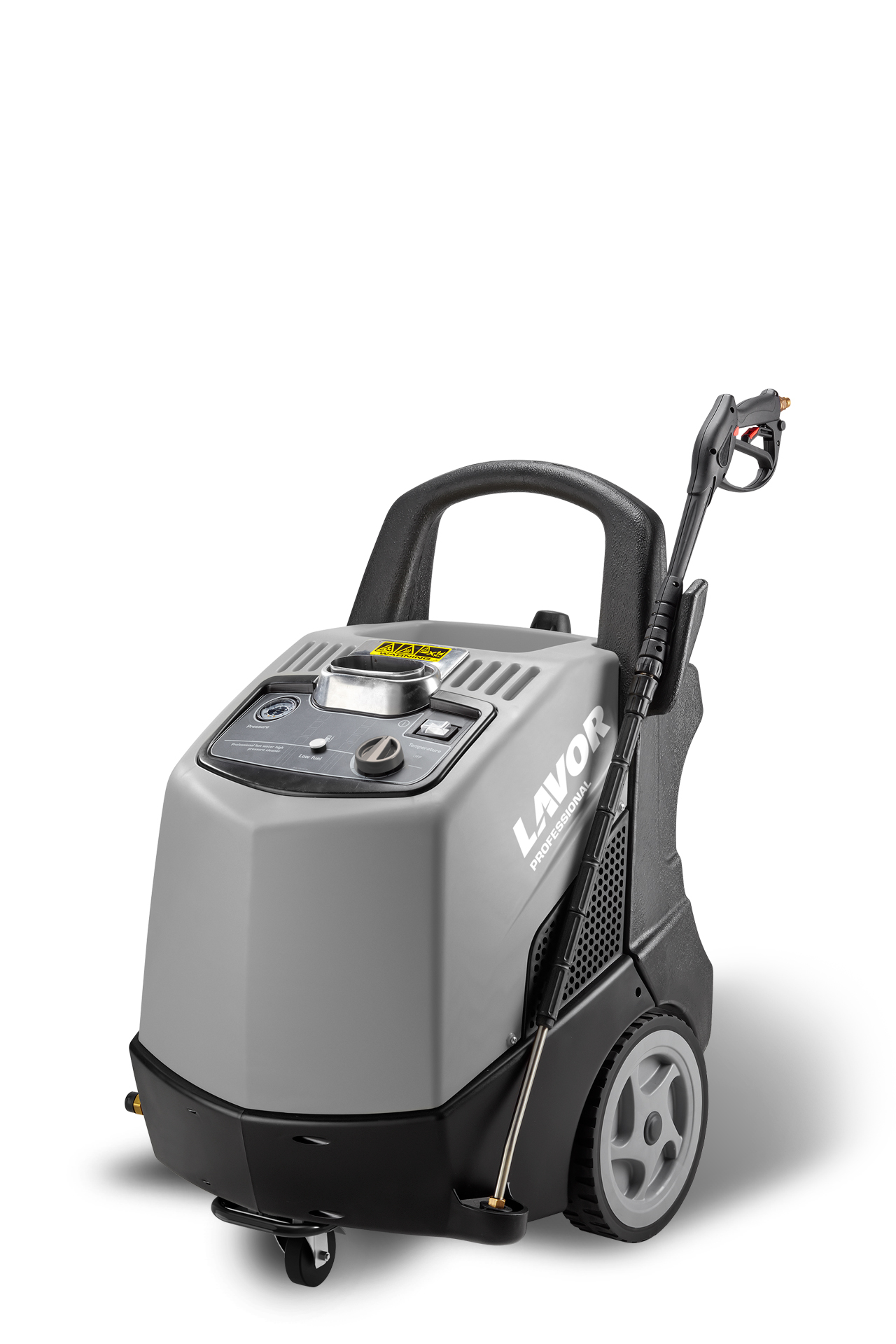

DAKOTA-R2

MAIN FEATURES

  • Three ceramic coated pistons, brass axial pump head with built-in by-pass valve.
  • Low voltage and delayed Total Stop.
  • Suction and delivery S. S. valves.
  • Vertical burner with high thermal efficiency steel coil.
  • Temperature regulation gauge.
  • Low fuel lamp.
  • Safety valve.
  • Detergent built-in tank (4,2 lt) for indirect suction.
  • Pressure regulator.
  • Glicerine pressure gauge.

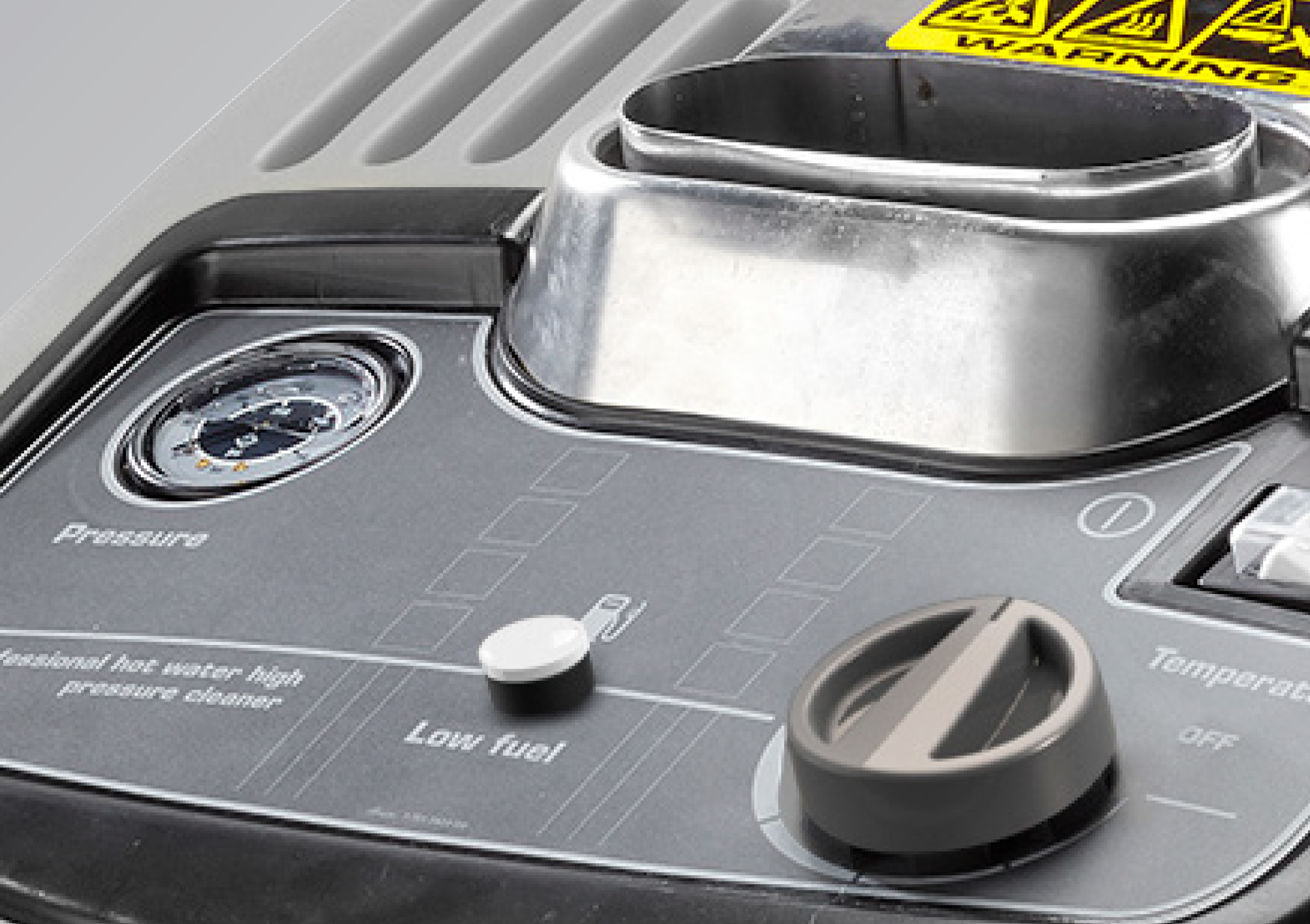

  • Panel with analogic controls.
  • Hose reel with brake (optional).

DAKOTA-R2

MAIN FEATURES

  • Three ceramic coated pistons, brass axial pump head with built-in by-pass valve.
  • Low voltage and delayed Total Stop.
  • Suction and delivery S. S. valves.
  • Vertical burner with high thermal efficiency steel coil.
  • Temperature regulation gauge.
  • Low fuel lamp.
  • Safety valve.
  • Detergent built-in tank (4,2 lt) for indirect suction.
  • Pressure regulator.
  • Glicerine pressure gauge.
  • Panel with analogic controls.
  • Hose reel with brake (optional).
Share


TECHNICAL FEATURES

1310 XP

Product code

36079-00010

Operating pressure (bar)

150

Max pressure (bar)

160

Delivery rate (l/h)

540

Absorbed power (W)

3200

power supply (V-Hz)

230-50

Pump type / RPM

MPBX2/2800

Heat output (kW)

58

Max. inlet temperature (°C)

40

Max. output temperature (°C)

140

Product dimensions (cm)

85x65x97

Packaging dimensions (cm)

69x85x111

Weight (Kg)

92

TECHNICAL DOCUMENTS



Technical data sheet
Product instruction manual

INCLUDED ACCESSORIES


STAINLESS STEEL LANCE 700mm PL4/1 QUICK CONNECTION M22 - cod. 00080-01715


HIGH PRESSURE NOZZLE 15035 1/8M - cod. 00080-03186


HIGH PRESSURE HOSE R1 1/4 8m 3/8F-M22 (MAX 21MPa) - cod. 00080-02254

Plus

201 - testata ottone.jpg

Brass Head

Brass pump head, robust and performing it is ideal for intense use

208-caldaia verticale.jpg

Vertical Burner

With high thermal efficiency steel coil and run on diesel fuel

204-regolatore di pressione.jpg

Pressure Regulator

It allows to adjust the pressure according to use and needs

Related products

OPTIONAL ACCESSORIES


KIT HOSE REEL - cod. 10001-10254
