TEXAS-R2

MAIN FEATURES

  • 4 poles electrical induction motor 1400 RPM with thermal protection
  • Brass linear pump with three ceramic coated pistons, double water seal and built-in by-pass valve
  • Suction and delivery S. S. valves.
  • Temperature regulation thermostat with high sensitive stainless steel sensor.
  • Auxiliary motor for burner
  • Delayed Total Stop
  • Professional control panel with Microleaks detector, Maintenance alert light, Power light, Diesel reserve warning light
  • Easy maintenance of motorpump and electronic panel by simply removing of the cover.
  • Vertical Diesel burner with high thermal efficiency steel coil.
  • Detergent built-in tank (4,2 lt) for indirect suction.
  • Pressure gauge
  • Low Diesel light
  • Hose reel with brake (optional).

TEXAS-R2

MAIN FEATURES

  • 4 poles electrical induction motor 1400 RPM with thermal protection
  • Brass linear pump with three ceramic coated pistons, double water seal and built-in by-pass valve
  • Suction and delivery S. S. valves.
  • Temperature regulation thermostat with high sensitive stainless steel sensor.
  • Auxiliary motor for burner
  • Delayed Total Stop
  • Professional control panel with Microleaks detector, Maintenance alert light, Power light, Diesel reserve warning light
  • Easy maintenance of motorpump and electronic panel by simply removing of the cover.
  • Vertical Diesel burner with high thermal efficiency steel coil.
  • Detergent built-in tank (4,2 lt) for indirect suction.
  • Pressure gauge
  • Low Diesel light
  • Hose reel with brake (optional).
Share


TECHNICAL FEATURES

TEXAS-R2 1211 LP 1509 LP 1811 LP

Product code

36079-00007

Operating pressure (bar)

110

Max pressure (bar)

135

Delivery rate (l/h)

660

Absorbed power (W)

3000

power supply (V-Hz)

230-50

Pump type / RPM

MP3/1400

Heat output (kW)

58

Max. inlet temperature (°C)

40

Max. output temperature (°C)

110

Product dimensions (cm)

85x65x97

Packaging dimensions (cm)

69x85x111

Weight (Kg)

112

TECHNICAL DOCUMENTS



Technical data sheet
Product instruction manual

INCLUDED ACCESSORIES

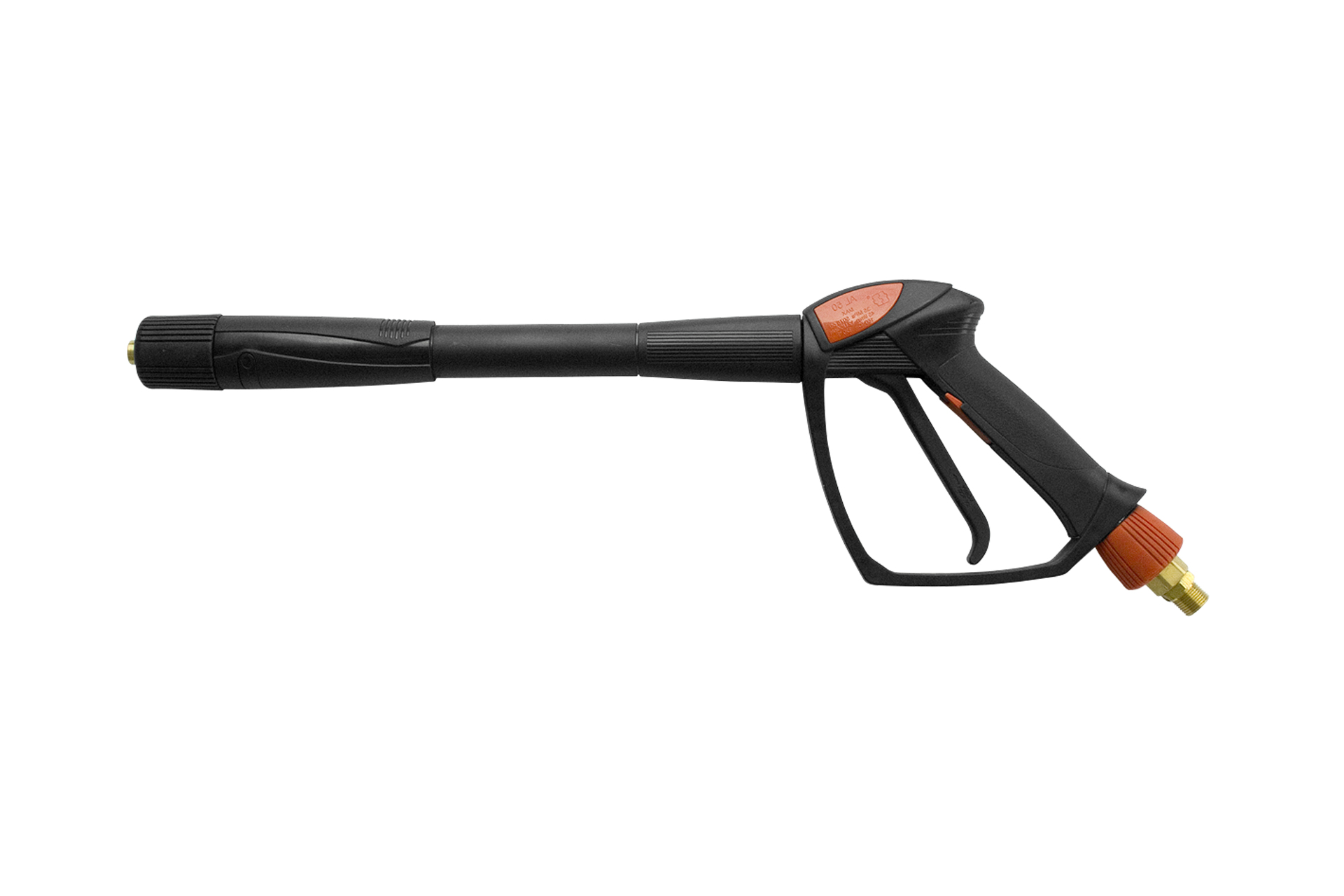

GUN AL 28 G 3/8 M - cod. 00080-04561


STAINLESS STEEL LANCE 700mm PL4/1 QUICK CONNECTION M22 - cod. 00080-01715


HIGH PRESSURE NOZZLE 15035 1/8M - cod. 00080-03186

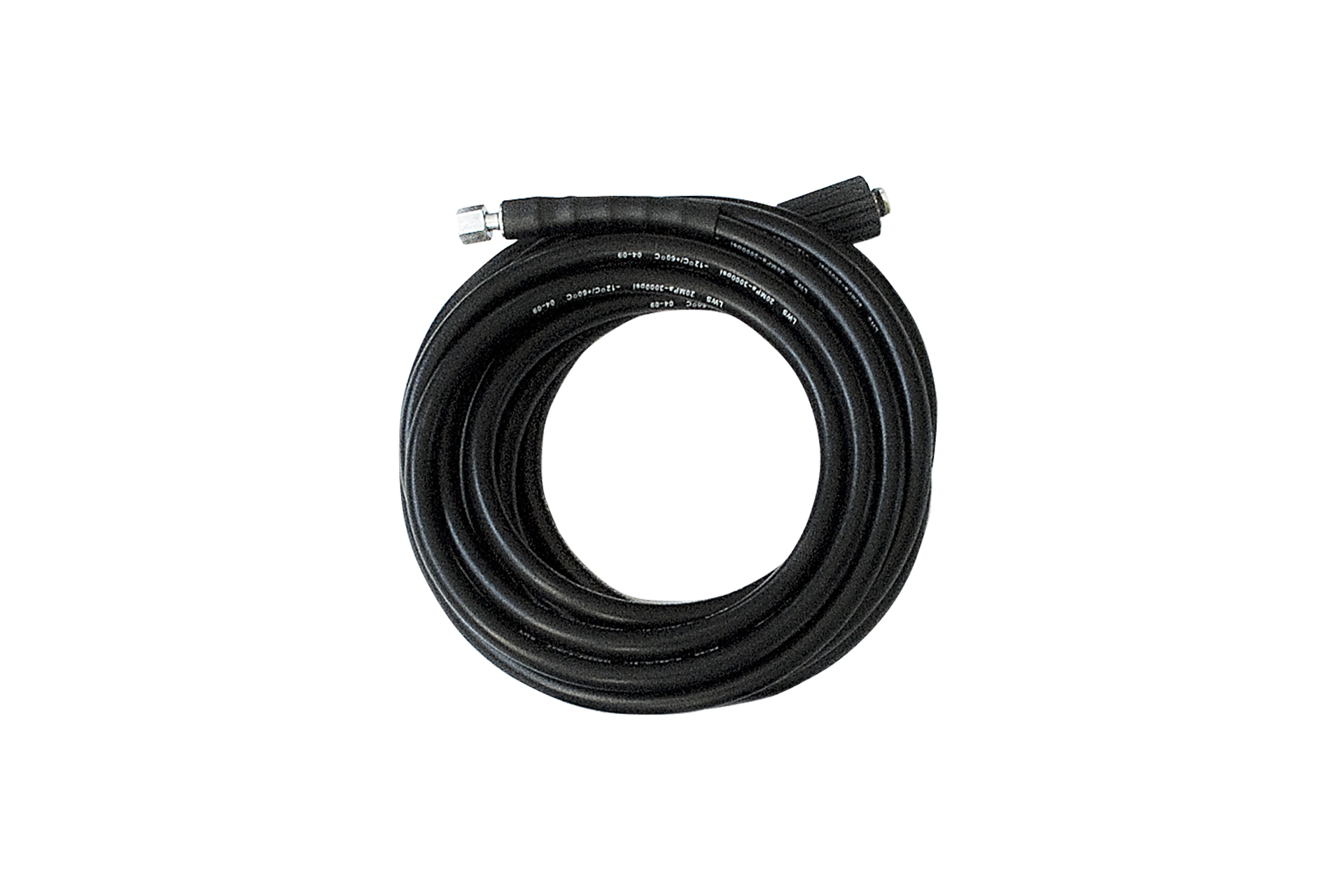

HIGH PRESSURE HOSE R1 1/4 10M SWIVEL- 3/8F-M22 (MAX 21MPA) - cod. 00080-02417

Plus

201 - testata ottone.jpg

Brass Head

Brass pump head, robust and performing it is ideal for intense use

208-caldaia verticale.jpg

Vertical Burner

With high thermal efficiency steel coil and run on diesel fuel

211_Giri motore.jpg

Motor Low Rotation Speed

The lower rotation speed of the components grants longer pump life

OTHER PRODUCTS IN THE RANGE Texas

HSR

Related products

OPTIONAL ACCESSORIES


KIT HOSE REEL - cod. 10001-10254

Request information for this product
